Custom Die-Cut Display Boxes
Die-cut display boxes are retail displays cut to a custom outline, with shaped headers, product silhouettes, cutout windows, or pop-out elements, so the display is recognizable by its shape before a shopper reads the brand name. A straight rectangle blends into the aisle; a shaped header in the outline of your product or mascot stops people.
Packaging Vista builds die-cut displays from 100 units with no die, tooling, plate, or setup fees, even for fully custom shapes. Every order includes a free dieline and 3D mockup. Standard production is 8 to 10 business days after proof approval, with free US shipping.
Key takeaways
- Shape as branding: silhouette headers, scalloped edges, cutout windows, and pop-out elements.
- No die fees: a custom cutting die usually costs extra; with us it is included, even at 100 units.
- Engineered to stand: cut rules, bracing, and balance checks so shaped headers do not tear, curl, or tip.
- Go deeper: see the counter display boxes hub, die-cut boxes, and window boxes, or request a free quote.
What is a die-cut display box?
Die cutting uses a sharp steel rule shaped like your outline to cut, crease, and perforate board in one pass. Every display is die cut in some way, since that is how the flat sheet gets its tabs and folds. A die-cut display means the outline itself is custom: the header is shaped, the front is cut into a curve, or parts of the panel are removed to create windows and negative space.
Shape carries a lot of weight in retail. Shoppers recognize an outline faster than they read text, so a header in the shape of a bottle, a cone, a leaf, or a character can identify the brand from across the store. For seasonal programs, a pumpkin, snowflake, or heart header does the same job for the promotion.
Die-cut display styles
Shaped header
The most popular upgrade: the header panel above the tray is cut to an arch, wave, badge, product outline, or mascot. Works on counter and floor displays alike.
Full silhouette display
The entire back and sides follow a shape, such as an oversized bottle or a character holding the product tray. Best on E-flute or B-flute corrugated.

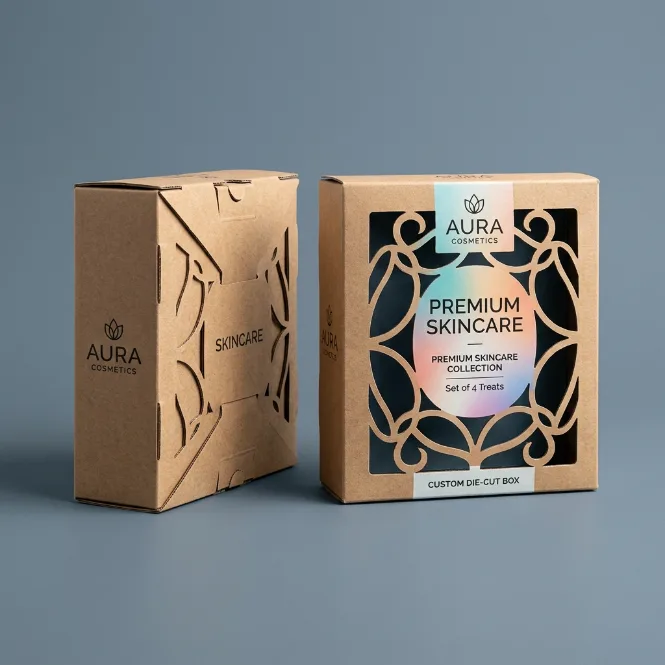

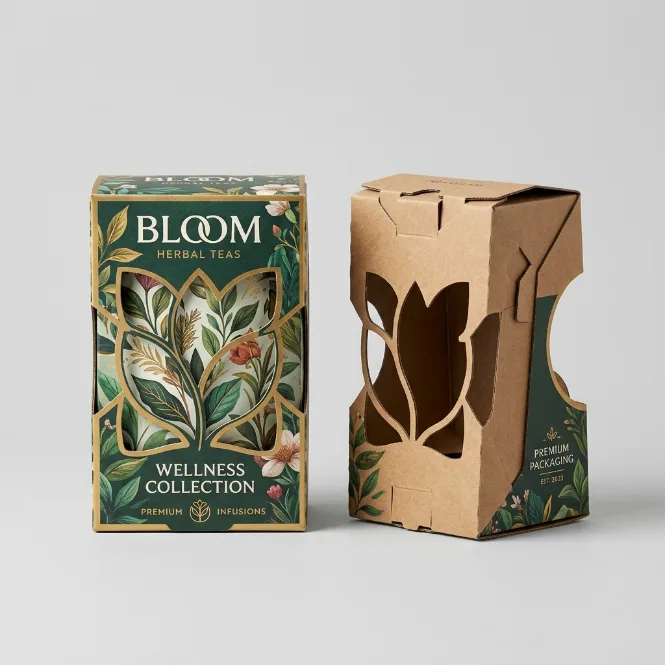

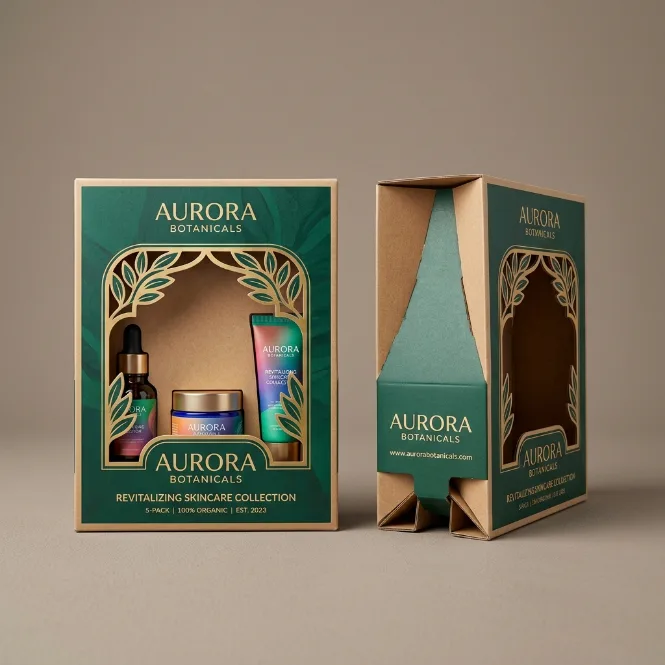

Cutout windows and negative space
Windows cut into the header or front panel reveal product, frame a face or logo, or lighten the look of a large panel.
Pop-out and layered elements
Separate die-cut pieces that slot in or fold forward to add depth, such as a 3D logo, a price burst, or a character arm.
Shaped front lips and dividers
A scalloped or curved front lip and shaped dividers add polish to counter trays without changing the footprint.
Common die-cut header shapes and sizes
| Shape | Typical header size (W × H) | Suggested board | Good for |
|---|---|---|---|
| Arch or rounded top | 8 × 5 in | 24 pt paperboard or E-flute | Beauty, candles, gifting |
| Scalloped or wave edge | 10 × 6 in | E-flute | Candy, bakery, kids' products |
| Product silhouette | 10 × 12 in | E-flute | Bottles, jars, signature packs |
| Mascot or character | 14 × 16 in | E-flute with back brace | Snacks, toys, seasonal |
| Floor-unit silhouette header | 22 × 18 in | B-flute or double-wall | Launches and promotions |
Materials and finishes for shaped displays
- SBS paperboard: cleanest edges and finest cut detail for small counter headers.
- E-flute corrugated: the default for shaped counter and shelf displays with real product weight.
- B-flute and double-wall: large shaped floor headers that must stay flat.
- Kraft: natural brown for shaped eco displays, see kraft display boxes.
- Finishes: lamination to protect cut edges from fraying, plus spot UV, foil, and embossing aligned to the shape.
Die-cut design rules that keep displays standing
- Inside curve radius: at least about 1/8 in on paperboard and 3/16 in on corrugated, so corners do not tear.
- Bridge width: narrow parts such as necks, handles, and ears should be at least about 3/8 in wide.
- Distance from folds: keep cuts at least about 1/4 in from crease lines.
- Header proportion: headers taller than the tray is deep usually need a back brace or easel.
- Grain and flute direction: run it vertically in tall headers to stop curling under store lighting.
- Bleed and safe zone: 1/8 in bleed past every cut and 1/8 in safe zone inside it.
How much do custom die-cut display boxes cost?
Typical ranges at a 500-unit run: $1.20 to $2.80 for a paperboard counter tray with a shaped header, $2.60 to $5.60 for an E-flute counter display with a silhouette header, $3.50 to $7.50 with pop-out or layered elements, and $26 to $65 for a floor display with a shaped header.
More complex outlines add a little cutting time, but there are still no die, tooling, plate, or setup fees. Send your shape and product on the quote form for an exact price.
How long do custom die-cut display boxes take to make?
Standard production is 8 to 10 business days after proof approval, and rush is available on most orders. For complex silhouettes or tall headers, a non-printed sample in your exact shape and board lets you test stability first. It costs USD 75 and is credited to your first order.
Straight-edge vs shaped header vs full silhouette
| Straight-edge header | Shaped header | Full silhouette | |
|---|---|---|---|
| Shelf impact | Standard | High | Highest |
| Structural work | Minimal | Moderate | Bracing and balance checks |
| Best for | Everyday replenishment | Brand and seasonal programs | Launches, hero promotions |
| Typical counter cost (500-run) | $2.20–$4.80 | $2.60–$5.60 | $3.50–$7.50 |
Are die-cut displays worth it for a small brand?
Often, yes, because the usual obstacle is gone. Most suppliers charge a separate die fee for every new shape, which makes custom outlines hard to justify on small runs. With no die fees and a 100-unit minimum, a small brand can give its counter display a signature outline for only a modest bump over a plain rectangle, and try a new seasonal shape each quarter.
Are die-cut display boxes recyclable?
The shape does not change recyclability: die-cut paperboard and corrugated displays with aqueous coating or varnish are accepted in most US cardboard recycling programs. Plastic lamination, film windows, and plastic pop-out parts can reduce acceptance, so use open cutouts and varnish where possible.
Under the FTC Green Guides, qualify recyclability claims where programs are not available to most of your customers.
Frequently Asked Questions
Do you charge a die fee for a custom shape?
No. There are no die, tooling, plate, or setup fees on any display, including fully custom silhouettes, even on a 100-unit order.
What shapes can you cut?
Almost any bold outline: arches, waves, badges, product silhouettes, mascots, seasonal icons, and cutout windows. Very thin spikes and tiny details are rounded slightly so they do not tear.
Will a tall shaped header tip the display over?
Not if it is engineered correctly. We add a back brace, fold-back easel, or wider base when a shaped header raises the center of gravity, and we check it in the 3D mockup.
What file do I need to send for a die-cut display?
A vector outline (AI, PDF, or SVG) is ideal, but a sketch or a photo of your product works too. We draw the production dieline for free.
How much do die-cut displays cost?
At 500 units, paperboard trays with a shaped header typically run $1.20 to $2.80, E-flute silhouette displays $2.60 to $5.60, and floor displays with a shaped header $26 to $65 each.
What is the minimum order and turnaround?
The minimum is 100 units. Standard production is 8 to 10 business days after proof approval, with rush available and free US shipping.
Can I test a complex shape before the full run?
Yes. A non-printed sample in your exact shape and board costs USD 75 and is credited to your first order.
Are die-cut displays recyclable?
Yes, in most US cardboard recycling programs when finished with aqueous coating or varnish. Plastic windows, films, and add-on parts can reduce acceptance.
Who orders custom die-cut display boxes?
Custom display boxes are ordered by brands that sell at the counter, the checkout lane, or the shelf edge, where the box itself has to stop a shopper and hold the product upright.
- Consumer brands entering retail — PDQ trays and counter displays that ship packed, open in seconds, and meet a buyer's planogram.
- Beauty and personal-care makers — lip balm, bath bomb, soap, and cosmetic display trays with cavities sized to each unit.
- Candy, snack, and convenience brands — checkout-lane display boxes with tall printed headers built for impulse buys.
- CBD, hemp, and smoke-shop suppliers — countertop display boxes with room for the compliance copy each product line needs.
- Wholesale reps and trade-show teams — display mailers and pop-up displays that ship to the store and turn into a merchandiser on arrival.
How to order custom die-cut display boxes
Five steps from quote to delivery. Every order includes free design support, a free custom dieline, and a digital mockup for approval before anything hits the press.
- Share your specs. Send box dimensions (or a photo of the product), quantity, material preference, and any artwork or logo files. If you're unsure of the size, our design team can advise from a product photo.
- Get a quote and mockup. Within one business day we return a firm quote, a printable dieline, and a 3D digital mockup of your die-cut display boxes. No die, plate, or setup fees are added.
- Approve the proof. Review the mockup, request color, layout, or dieline changes, and give final approval. Revisions are unlimited before press.
- Production (8–10 business days). Your order runs on offset or digital press, then moves through finishing — lamination, spot UV, foil stamping, embossing, die-cutting, and assembly if needed.
- Free US shipping. Orders ship flat-packed with tracking. Assembled bundles or master-carton packing are available on request at no charge.
