Custom Corrugated Display Boxes
Corrugated display boxes are retail displays built from fluted corrugated board, engineered to carry heavy product on a floor, a pallet, or a tall multi-shelf tower without bowing, leaning, or collapsing. They are the heavy-duty end of the display family: the units you see at club stores, grocery endcaps, and big-box promotional aisles.
Packaging Vista engineers and prints them from 100 units with no die, plate, or setup fees. Every order includes a free dieline and 3D mockup. Standard production is 8 to 10 business days after proof approval, with free US shipping.
Key takeaways
- Built for weight: E-flute, B-flute, and double-wall board chosen from your actual shelf load.
- Floor and pallet formats: towers, quarter-, half-, and full-pallet displays for grocery, mass, and club retail.
- Survives the store floor: reinforced bases, shelf lips, and lamination on the panels carts hit.
- Low barrier: 100-unit minimum, no die, plate, or setup fees. See the counter display boxes hub, corrugated boxes, or get a free quote.
What is a corrugated display box?
Corrugated board is two flat liners glued to a wavy inner layer called the flute. The flute works like a row of small arches, which gives the board stiffness far beyond its weight. A corrugated display uses that stiffness to hold product: shelves stay flat, side walls stay upright, and the whole unit can be stacked on a pallet in a truck and still stand straight on arrival.
Where paperboard counter trays top out at a few pounds, a corrugated floor display can carry well over 100 lb when the flute, board strength, and supports are chosen correctly. That engineering, not the print, is what separates a display that lasts the full promotion from one that sags in week two.
Corrugated display styles

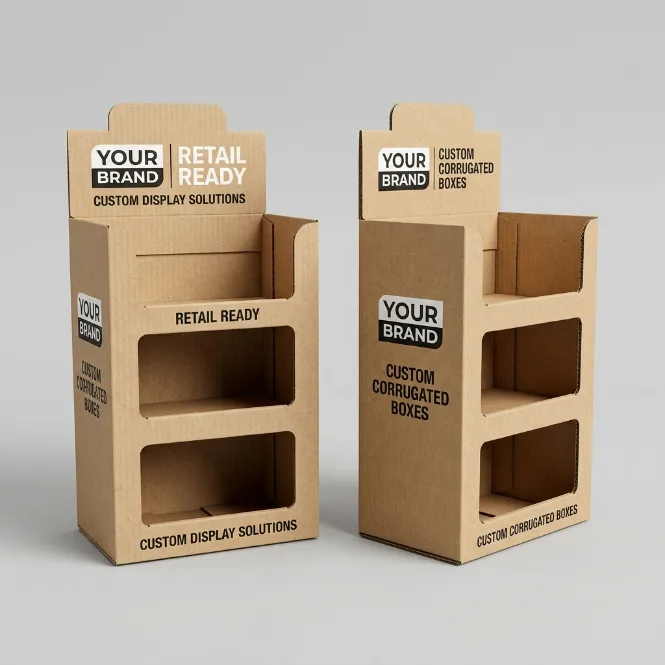

Multi-shelf floor tower
A freestanding unit with three to five shelves and a tall header, the most common promotional floor display. Shelves are often angled forward so product stays faced.
Quarter-, half-, and full-pallet displays
Displays built on a pallet footprint, shipped pre-loaded, and rolled onto the sales floor in one move. Common in club and warehouse stores where the pallet is the fixture.
Floor dump bin
A deep double-wall bin for loose single-SKU product such as bagged snacks, balls, or seasonal items. The base and upper rim are reinforced to stop bulging.
Pre-packed shipper display
A corrugated case that ships full of product and opens into a display. It saves the store a stocking step. Smaller formats are covered on our PDQ boxes page.
Flute and load guide
| Board | Approx. thickness | Typical use | Typical load range |
|---|---|---|---|
| E-flute | 1/16 in | Counter and shelf trays | Up to about 15 lb total |
| B-flute | 1/8 in | Floor towers, sidekicks | About 10 to 25 lb per shelf |
| C-flute | 5/32 in | Taller towers, bins | About 20 to 35 lb per shelf |
| EB double-wall | 3/16 in | Printed floor units needing strength | About 25 to 40 lb per shelf |
| BC double-wall | 1/4 in | Pallet displays, dump bins | 40 lb+ per shelf with supports |
Load ranges are starting points; final specs depend on shelf span, product shape, and humidity. We confirm them on the structural sample.
Printing and finishes
- White-top liner: bright white surface for full-color brand graphics.
- Kraft liner: natural brown look, covered on our kraft display boxes page.
- Litho-lam: a printed paper sheet laminated to the corrugated for photo-quality headers.
- Lamination: gloss or matte on lower panels and headers to resist scuffs and moisture.
Engineering for load, stability, and the store floor
- Flute direction: set vertically in walls so the arches carry the load, horizontally where panels need to fold cleanly.
- Shelf spans: wider shelves get a folded front lip or a center support to stop bowing.
- Center of gravity: heavy product goes on lower shelves, and tall towers get a wider base so the display does not tip when the bottom empties first.
- Humidity: corrugated loses strength in damp conditions, so grocery and garden-center displays get a stronger board grade.
- Floor contact: a double-wall kick base protects against mops, carts, and floor cleaners.
Retailer requirements for pallet displays, such as footprint, maximum height, and labeling, vary by chain. Share their spec sheet and we build to it.
How much do custom corrugated display boxes cost?
Typical ranges at a 500-unit run: $2.20 to $4.80 for an E-flute counter tray, $22 to $55 for a four-shelf B-flute floor tower, $35 to $80 for a quarter-pallet display, and $28 to $60 for a double-wall floor dump bin. Litho-lam headers and lamination add to the cost. There are no die, plate, or setup fees. Send your load and footprint on the quote form for an exact price.
How long do corrugated display boxes take to make?
Standard production is 8 to 10 business days after proof approval, with rush available on most jobs. Heavy floor and pallet displays benefit from a structural check first: a non-printed sample in your final board costs USD 75 and is credited to your first order.
E-flute vs B-flute vs double-wall displays
| E-flute | B-flute | Double-wall | |
|---|---|---|---|
| Best for | Counter and shelf units | Standard floor towers | Pallet displays, heavy bins |
| Print sharpness | Highest | Good | Good, or use litho-lam |
| Relative stiffness | Moderate | High | Highest |
| Typical cost (500-run) | $2.20–$4.80 | $22–$55 | $28–$80 |
Are corrugated displays worth it for a small brand?
If you have landed a regional grocery chain, a club-store roadshow, or a big-box test, yes. A floor or pallet display gets your product out of the crowded aisle into open floor space, and retailers often require one for promotional placements. With a 100-unit minimum you can build displays for a single test region, prove the sell-through, and then scale up for a wider rollout.
Are corrugated displays recyclable?
Corrugated is one of the most widely recycled packaging materials in the US, and most stores already bale it. Displays finished with aqueous coating or varnish go straight into that stream. Plastic lamination, litho-lam films, and plastic hooks can reduce acceptance in some programs. Under the FTC Green Guides, keep claims specific and qualified where recycling is not broadly available.
Frequently Asked Questions
How much weight can a corrugated floor display hold?
It depends on the board and supports. A B-flute tower typically carries about 10 to 25 lb per shelf, and double-wall with shelf supports can carry 40 lb or more per shelf. We spec the board from your actual load.
What is the difference between B-flute and double-wall?
B-flute is a single layer of flute about 1/8 in thick. Double-wall stacks two flute layers for about 1/4 in of board and much higher stiffness, used for pallet displays and heavy bins.
Can you build quarter-pallet and half-pallet displays?
Yes. We build quarter-, half-, and full-pallet displays to the retailer's footprint and height limits, designed to ship pre-loaded and roll straight onto the sales floor.
Will the display survive humidity and floor cleaning?
We use a stronger board grade for humid environments, add a double-wall kick base, and laminate the lower panels so mops and carts do not ruin the display.
How much do corrugated floor displays cost?
At 500 units, four-shelf B-flute towers typically run $22 to $55 and quarter-pallet displays $35 to $80 each. There are no die, plate, or setup fees.
What is the minimum order and turnaround?
The minimum is 100 units. Standard production is 8 to 10 business days after proof approval, rush is available, and US shipping is free.
Can I get a structural sample first?
Yes. A non-printed sample in your final size and board costs USD 75, credited to your first order. We recommend it for any heavy floor or pallet display.
Are corrugated displays recyclable?
Yes. Corrugated with aqueous coating or varnish is accepted by most US store and curbside cardboard recycling. Plastic films and hooks can reduce acceptance in some programs.
Who orders custom corrugated display boxes?
Custom display boxes are ordered by brands that sell at the counter, the checkout lane, or the shelf edge, where the box itself has to stop a shopper and hold the product upright.
- Consumer brands entering retail — PDQ trays and counter displays that ship packed, open in seconds, and meet a buyer's planogram.
- Beauty and personal-care makers — lip balm, bath bomb, soap, and cosmetic display trays with cavities sized to each unit.
- Candy, snack, and convenience brands — checkout-lane display boxes with tall printed headers built for impulse buys.
- CBD, hemp, and smoke-shop suppliers — countertop display boxes with room for the compliance copy each product line needs.

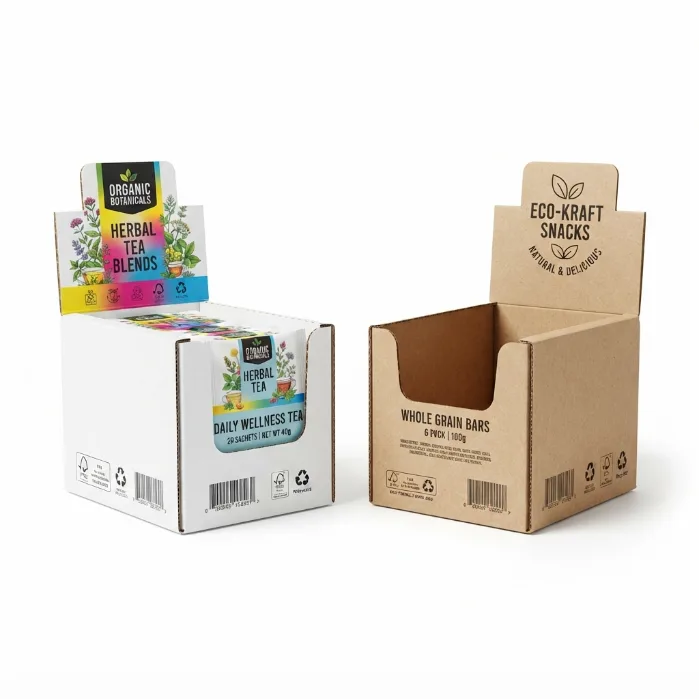

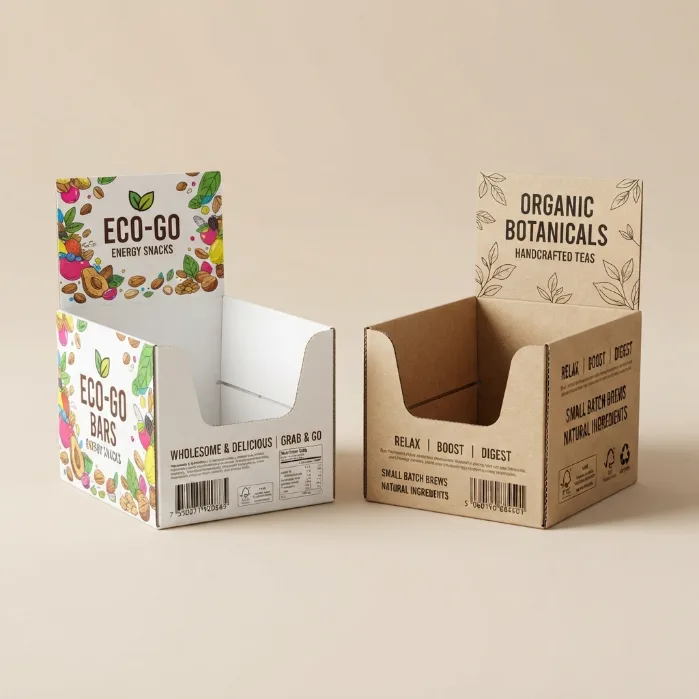

- Wholesale reps and trade-show teams — display mailers and pop-up displays that ship to the store and turn into a merchandiser on arrival.
How to order custom corrugated display boxes
Five steps from quote to delivery. Every order includes free design support, a free custom dieline, and a digital mockup for approval before anything hits the press.
- Share your specs. Send box dimensions (or a photo of the product), quantity, material preference, and any artwork or logo files. If you're unsure of the size, our design team can advise from a product photo.
- Get a quote and mockup. Within one business day we return a firm quote, a printable dieline, and a 3D digital mockup of your corrugated display boxes. No die, plate, or setup fees are added.
- Approve the proof. Review the mockup, request color, layout, or dieline changes, and give final approval. Revisions are unlimited before press.
- Production (8–10 business days). Your order runs on offset or digital press, then moves through finishing — lamination, spot UV, foil stamping, embossing, die-cutting, and assembly if needed.
- Free US shipping. Orders ship flat-packed with tracking. Assembled bundles or master-carton packing are available on request at no charge.
