Packaging Artwork & Dielines: How to Set Up Print-Ready Files

A dieline is the flat blueprint your box is printed and cut from – it shows where the material is cut, folded, and glued. Getting artwork onto it correctly is what separates a crisp, professional box from a misprinted one. The good news: you do not have to master this yourself. We build the dieline free and our design team preps your file. Still, understanding the basics helps you supply better artwork and avoid surprises. You can request a free quote and a free dieline anytime - for any structure, from mailers to precision die-cut boxes and cartons.

What is a dieline?

A dieline is a 2D template of your box laid out flat, with lines that mark every cut, fold, and glue tab. Your artwork goes on top of it, so that when the box is cut and folded, your design lands exactly where you want it. Every custom box starts from one – and we create yours free, sized to your exact product. Need to nail the dimensions first? See how to measure your product.

How to read a dieline

A dieline uses different line types to mean different things, and reading them correctly prevents the most common mistakes. Solid lines are cut lines – the actual edges of the finished box. Dashed or dotted lines are folds and creases, where the material bends rather than cuts. Glue tabs are the flaps that get bonded to hold the box together, and you generally keep important artwork off them. When you design with these in mind, you avoid placing a logo across a fold or a barcode on a glue tab where it would disappear into a seam.

One point that trips up first-time designers is how the panels relate to each other once the box is folded. On a flat dieline the front, back, sides, top, and bottom all sit next to one another in a single layout, but on the finished box they wrap around into three dimensions. That means a panel printed on the far right of the dieline may end up directly beside a panel printed on the far left once the material is folded and glued. If you want a continuous pattern or a graphic that flows around a corner, you have to plan for where each edge meets its neighbor, not just how each panel looks on its own. Reading the dieline as a folded object rather than a flat sheet is the habit that prevents most layout surprises.

Orientation matters just as much as placement. Every panel has a top and a bottom, and it is easy to lay type on a lid or a bottom flap upside down or sideways without noticing on the flat file. Before you commit, mentally fold the box in your head, or ask us for a 3D mockup that shows exactly how each panel will read when the box is standing on a shelf. That single check catches rotated logos, mirrored text, and side panels that end up reading back to front – all of which are invisible on the flat dieline but obvious the moment the box is assembled.

Bleed, trim, and safe zone

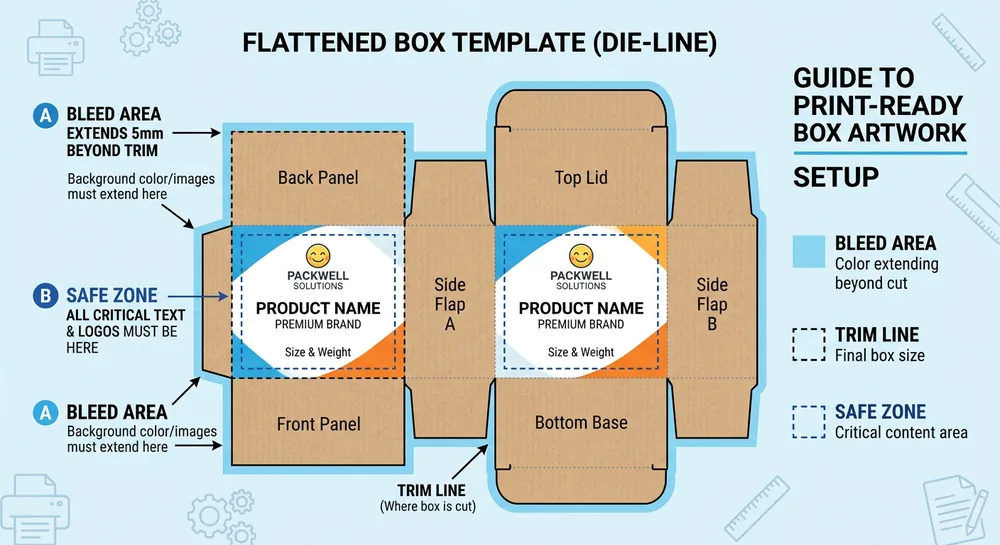

Three lines on a dieline matter most. Getting them right prevents white edges and cut-off text.

Rule of thumb: background to the bleed, important content inside the safe zone.

It helps to understand why the bleed exists in the first place. No cutting process is perfectly precise: dies, blades, and the material itself can shift by a hair from one sheet to the next. If your background color or image stopped exactly at the trim line, any tiny movement in the cut would expose the bare edge of the board as a thin white line. Extending the artwork past the trim gives the cut somewhere to land without ever running out of ink, so the edge stays clean no matter how the sheet moves. The safe zone protects you from the same tolerance in the other direction – by holding logos, text, and anything you cannot afford to lose a small margin inside the trim, you guarantee they survive even if the cut drifts inward slightly.

The same thinking applies to folds, not just cuts. Creases can wander a little too, so it is wise to keep critical elements a comfortable distance away from any fold line as well as from the trim. Text that straddles a crease can look broken or distorted once the panel bends, and a logo centered right on a fold rarely looks intentional. When in doubt, give your important content breathing room on all sides. If you are ever unsure whether an element sits safely, send it over and we will flag anything sitting too close to a cut or crease before it becomes a reprint.

Vector vs. raster artwork

The file type affects how sharp your box looks:

• Vector (AI, EPS, or vector PDF) scales to any size without blurring – ideal for logos, type, and line art. It is the preferred format.
• Raster (JPG, PNG, PSD) is made of pixels and can blur if scaled up. If you use raster images, supply them at a minimum of 300 DPI at final size.

Color: CMYK and Pantone

Screens and presses show color differently, so set color up for print:

• CMYK is the four-ink print color model. Build artwork in CMYK rather than RGB (a screen model), since RGB can shift when printed.
• Pantone (PMS) spot colors reproduce an exact, consistent brand color across every run – the safest choice for a specific logo color.

If brand-color consistency matters to you, tell us your Pantone reference and we match it on press.

There is also the question of fonts, which quietly causes more reprints than most people expect. When you save a design file, the text stays “live” unless you convert it, which means it depends on the exact font being installed wherever the file is opened. If our press does not have that precise font and weight, the software may substitute a different one, and your carefully chosen type can reflow, change spacing, or shift to a look you never approved. The reliable fix is to outline your fonts – converting the letters into vector shapes so they are locked in place and no longer need the original font file. Once text is outlined it prints exactly as you designed it, though it can no longer be edited as type, so it is best to finish your copy first and outline as a final step.

File format ties all of this together. Layered, editable formats such as native AI or a press-ready PDF preserve your vector art, your color settings, and your placement on the dieline, which is why they are the easiest for us to work with. Flattened image formats can still work when necessary, but they strip away the flexibility to correct small issues without re-exporting. Whenever you supply a file, include any linked images rather than assuming they travel with the document, and keep your artwork on its own layer above the dieline so the structure and the design never get merged by accident.

A quick file checklist

• Artwork placed on our dieline, on its own layer.
• Background extended to the bleed; text inside the safe zone.
• Vector art where possible; raster images at 300 DPI or higher.
• Colors in CMYK, with Pantone references for exact brand colors.
• Fonts outlined or supplied, and linked images included.

Not set up to do all that? You do not need to be – read on.

Common artwork mistakes to avoid

A few errors account for most reprints. Designing in RGB and being surprised when print colors shift is the classic one – build in CMYK from the start. Forgetting bleed leaves thin white slivers along the edges if the cut moves even slightly. Placing text too close to the trim risks it getting clipped – keep it inside the safe zone. Using low-resolution logos pulled from a website (often 72 DPI) leads to fuzzy print; always supply vector or 300 DPI art. And leaving fonts un-outlined can cause type to reflow if the press does not have your font. Catching these before press is exactly what the proof stage is for.

What if you don't have artwork?

Most of our customers do not arrive with a print-ready file, and that is fine. Send us a logo and a description of what you want, and our free design team builds the dieline and lays out a print-ready box for you. You then review a digital proof and 3D mockup before anything goes to press – so you approve the final look with no design bill. It is part of how we keep packaging accessible, alongside no die or plate fees and a 100-box minimum.

The proof stage is where all of this preparation pays off, so it is worth treating your review carefully rather than rushing to approve. When your digital proof arrives, check the spelling and any phone numbers, web addresses, or legal copy character by character, since a typo approved at proof will be faithfully reproduced across the entire run. Confirm that your logo colors look right, that nothing important sits too close to an edge, and that every panel is oriented the way you expect. The 3D mockup is especially useful here because it shows the box as a shopper will actually see it, letting you catch an upside-down side panel or a graphic that does not line up around a corner while it is still free to fix.

Think of the proof as your last and best checkpoint. Changes made at this stage cost nothing but a moment of attention, whereas the same change caught after printing means starting over. If anything looks off – a color that seems too warm, text that feels cramped, a fold landing in an awkward spot – say so, and we will revise and send an updated proof until you are genuinely happy. Nothing goes to press until you give the final approval, so you are always in control of exactly how the finished box will look.

From file to finished box: what happens next

Once your artwork is approved, the workflow is straightforward. We prep the print-ready file on your custom dieline, send a digital proof (and a 3D mockup) for your sign-off, and only move to press once you approve it. We print using offset or digital depending on your run size and color needs, then cut, fold, and glue to the dieline. With an 8–10 day turnaround from a US-based facility in Cheshire, Connecticut, the path from approved file to delivered boxes is short and predictable.
